Goobay

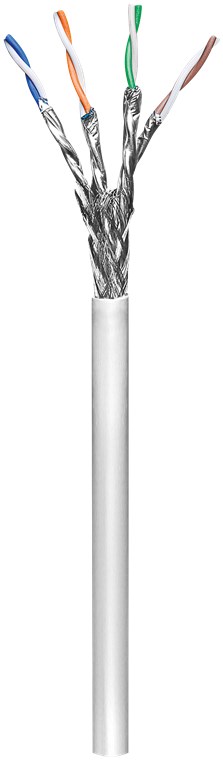

CAT 6 network cable, S/FTP (PiMF), grey
copper-clad aluminium wire (CCA), AWG 26/7, PVC cable sheath
/4
Product and packaging similar. Subject to modifications and errors.
Goobay
CAT 6 network cable, S/FTP (PiMF), grey
copper-clad aluminium wire (CCA), AWG 26/7, PVC cable sheath
Article details
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Our solutions are especially suitable for high-resolution image transmission in 8K @ 60 Hz and 4K @ 120 Hz. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!

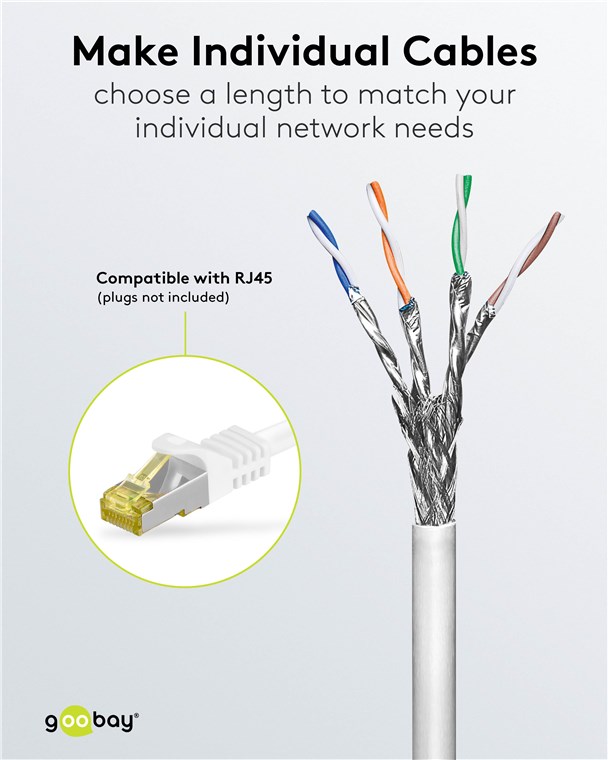

  • Unterminated, double-shielded LAN cable for the small office and working from home (SOHO and WFH applications)

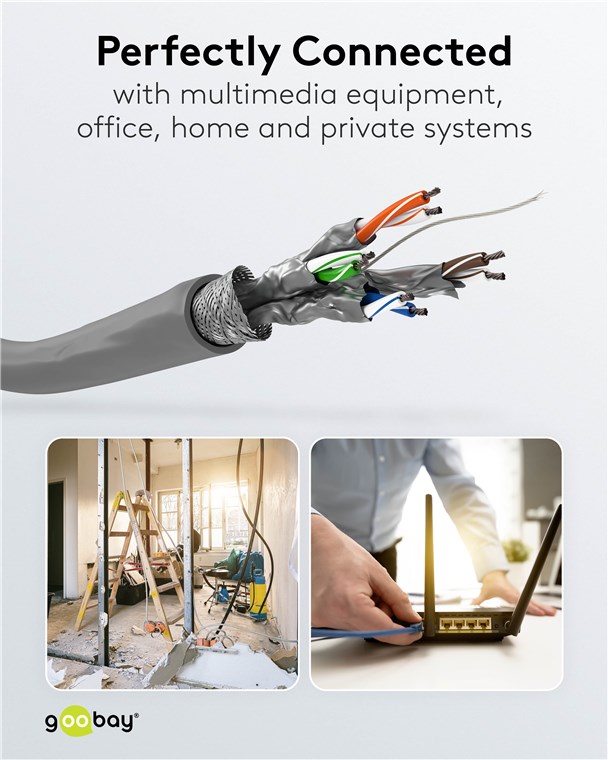

  • S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
  • Flexible, unterminated twisted pair data cable for indoor use with a maximum transmission length of 20 m
  • High-quality copper-clad aluminium wire (CCA) and double shielding guarantee an excellent, powerful network connection.
  • Sturdy PVC jacket effectively protects the Ethernet cable from breakage.
  • Complies with the Construction Products Regulation (CPR) and Eca fire protection class
Technical specifications
Cable
Diameter of insulated conductor
1.05 mm (+/-0.05)
AWG
26/7 (stranded)
Specification
CAT 6
Cable sheath diameter (approx.)
6.3 mm
Shielding class
S/FTP (PiMF)
Number of shieldings
2 x
Cable type
round cable
Material cable sheath
PVC
Inner conductor material
CCA (copper-clad aluminium)
Type 1, shielding
foil (alu) PiMF
Type 2, shielding
braid (alu) overall shield
Fire class (CPR)
Eca

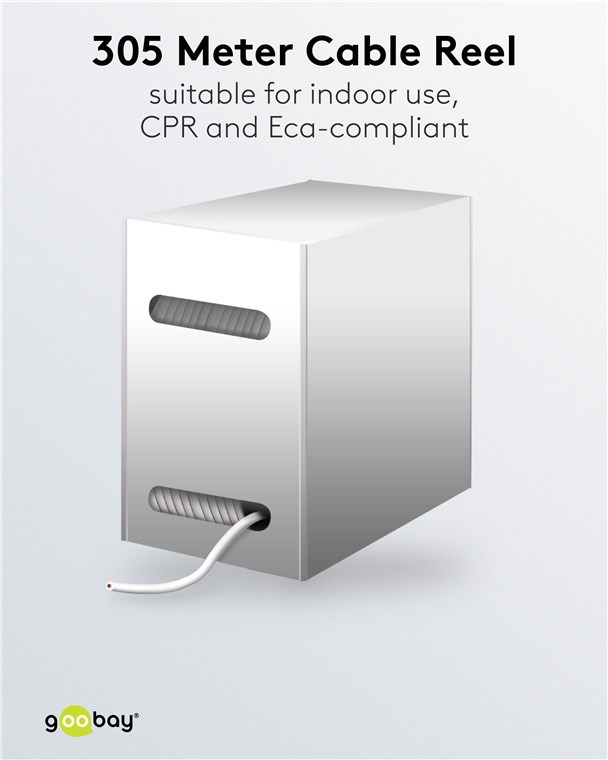

Cable length
305 m
Signal transmission
usable up to cable length
20 m
Impedance
100 Ω
max. bandwidth
250 MHz
General
Markings
ECA_CPR, CE, SOHO
Color
grey
Packaging type
Pull-out-Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Downloads
Product data sheet pdf Declaration of conformity pdf
Packing units:
1 / 2
Item: 95693
EAN: 4040849956935
