Basic
TV Wall Mount Basic FULLMOTION (L)
mount for TVs from 37 to 80 inches (94 – 203 cm), max. 40 kg, fully flexible: swivels and tilts
Basic
TV Wall Mount Basic FULLMOTION (L)
mount for TVs from 37 to 80 inches (94 – 203 cm), max. 40 kg, fully flexible: swivels and tilts
Article details
Full articulation for new perspectives: The flexible wall mount adapts to all viewing habits and offers the right position for every viewing angle in the room. With the dynamic scissor arm and smooth joints, the mount can be adjusted easily and effortlessly – whether tilting, swivelling or pulling out: The all-rounder masters every challenge with ease.
- Maximum flexible TV mount for an optimised viewing angle: +3/-15° tiltable (up/down), +60/-60° swivelling (left/right), 35.5 cm extendable
- For a discreet room appearance, the mount achieves a minimum wall clearance of 6.7 cm so that the TV does not protrude/extend into the room

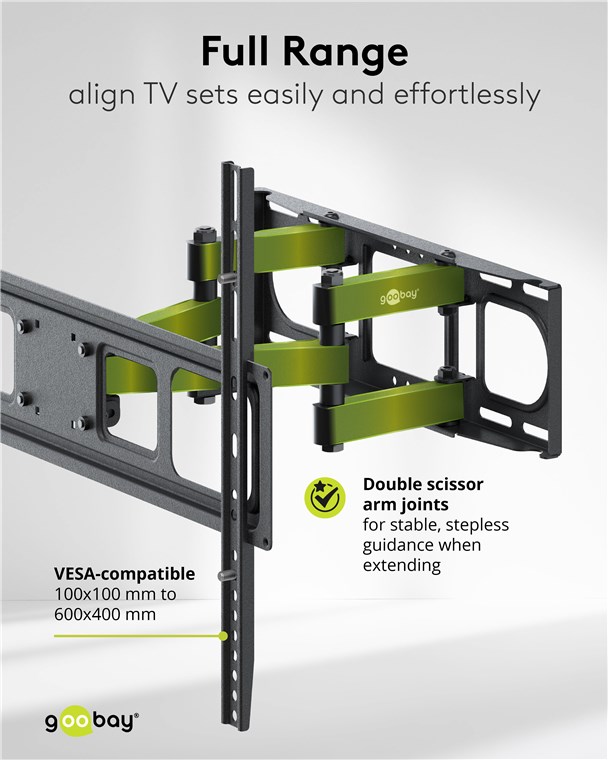

- The infinitely adjustable, double scissor arm joint ensures stable guidance when extending the mount and a reliable hold

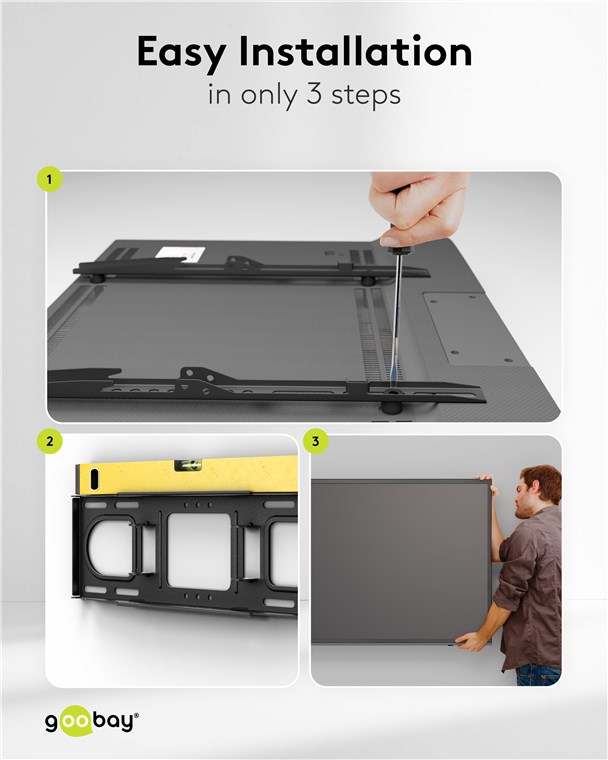

- Simple mounting: In a first step, screw the mounting rails to the TV, in a second step, hook them into the mount at either height level 1 or 2

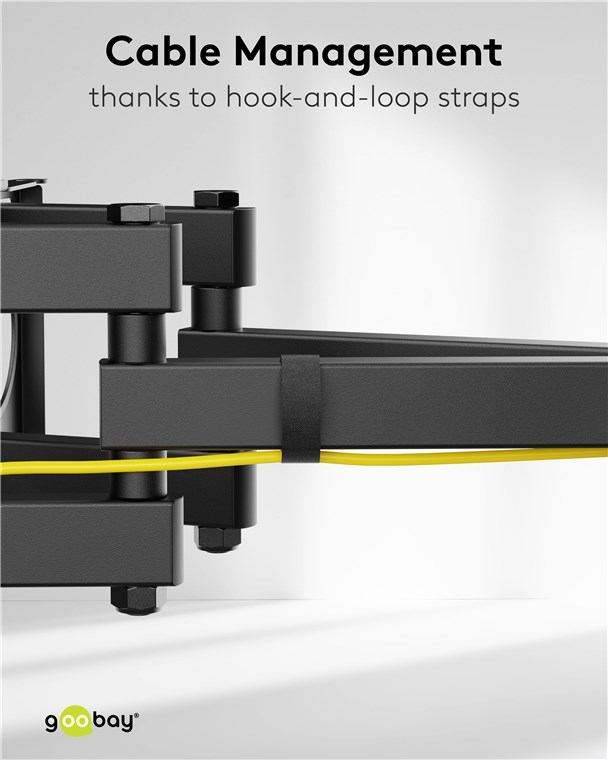

- Hook-and-loop fasteners attach the cables to the scissor arms, ensuring a clean look without cable clutter
- The TV wall bracket is suitable for most curved and flat screen TVs from popular brands, e.g. Samsung (QLED and LED), Sony, Philips and LG as well as many sizes, e.g. 50 inch, 55 inch, 58 inch, 65 inch, 75 inch
- Compatible with VESA® standards 100x100 mm, 100x150 mm, 150x100 mm, 100x200 mm, 200x100 mm, 150x150 mm, 200x200 mm, 300x200 mm, 400x200 mm, 300x300 mm, 400x300 mm, 600x200 mm, 400x400 mm, 600x300 mm ,600x400 mm
Technical specifications
Performance
Bracket type
TV Fullmotion
screen size
L (94-203 cm / 37-80")
maximum load
40 kg
min. Wall distance
67
max. Wall distance
355
Swivel Range
+60° ~ -60°
inclination and tilting ranges
+5° ~ -15°
Rotation
+3° ~ -3°
max. Mouting Hole (VESA)
600x400
VESA (FDMI)
100 x 100 mm, 100 x 150 mm, 150 x 100 mm, 100 x 200 mm, 200 x 100 mm, 150 x 150 mm, 200 x 200 mm, 200 x 300 mm, 300 x 200 mm, 200 x 400 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm
General
Color
black
Material
steel (powder-coated)
Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Weight
1450 g
Scope of delivery
Assembly Material
dowel, screws
Downloads
Packing units:
1 / 3
Item: 76474
EAN: 4040849764745
